Perfectly matched system for dry drilling reinforced concrete. The DME19DP in conjunction with TYROLIT TGD®-Technology dry drill bits is the solution for dry drilling applications in reinforced concrete. The practical centring aid ensures precise drill bit guidance and a longer diamond tool lifetime. Switchable soft impact function accelarates work progress, particularly in hard materials. The soft start and the LED indicator aid the user in selecting the optimal drilling speed. Show more Show less
Downloads |
---|
Product flyer PDF 203 kb |
Manual PDF 382 kb |
Ideal for electrical and installation work. The DME22SU drill motor is ideal for electrical and installation work. It features a 3-speed transmission and variable speed setting with soft start. Integrated overload cut-outs and the PRCD safety switch ensure safe working. Dry drilling is also possible with the included M16 adapter. Show more Show less
Downloads |
---|
Product flyer PDF 161 kb |
Manual PDF 1.15 mb |
The DME17 is a 2-speed dry drill motor for drilling diameters up to 200 mm. The DME17 is a 2-speed dry drill motor for drilling diameters up to 200 mm. The powerful 2.0 kW motor, in combination with the switchable soft impact, enhances the drilling performance in reinforced concrete and in other hard materials. The machine can be both hand-held and drill-rig operated. The compact design, low weight and integrated dust extraction system makes the core drill very user-friendly. This model is unique in that it is available in three speed versions (standard, slow and quick) and thus optimally covers the most varied of customer needs. Show more Show less
Downloads |
---|
Product flyer PDF 148 kb |
Manual PDF 1.17 mb |

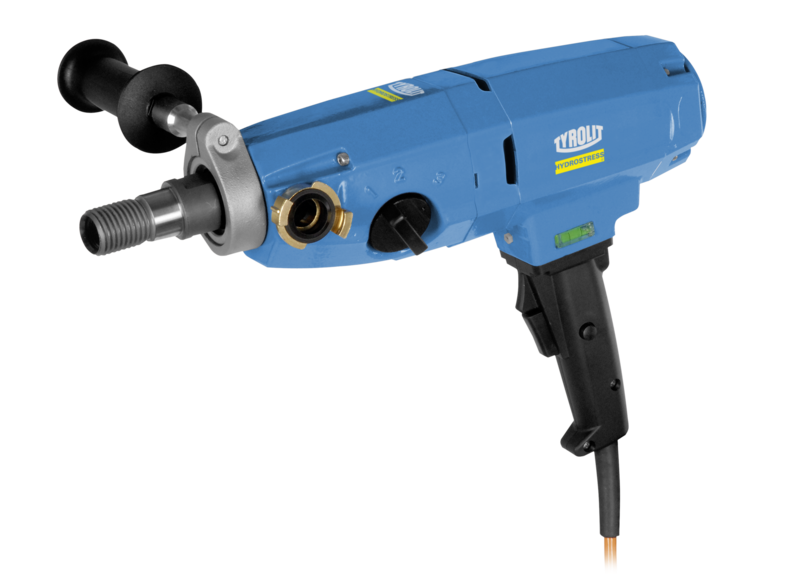

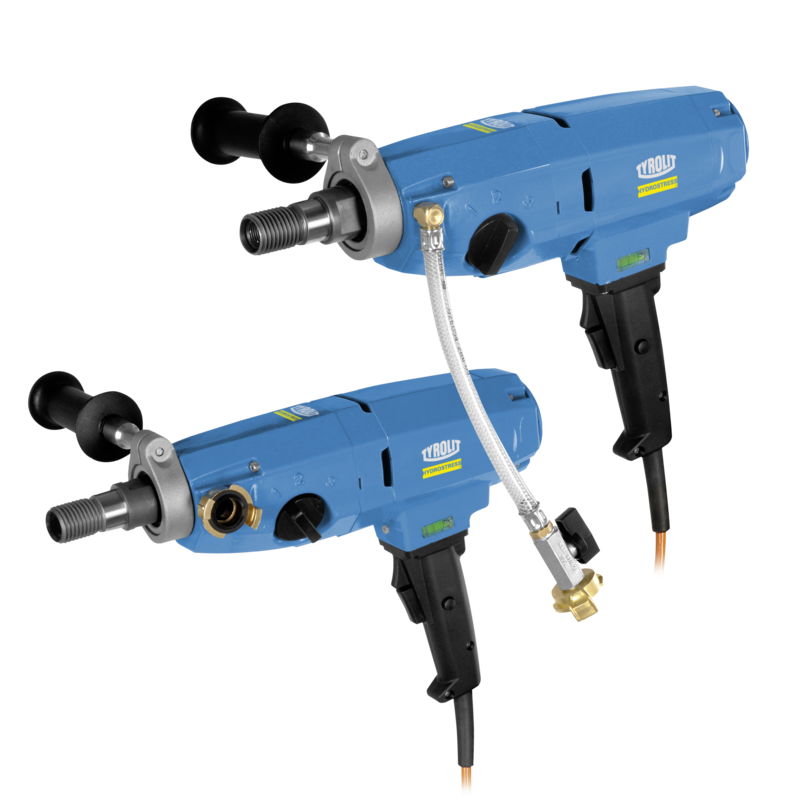

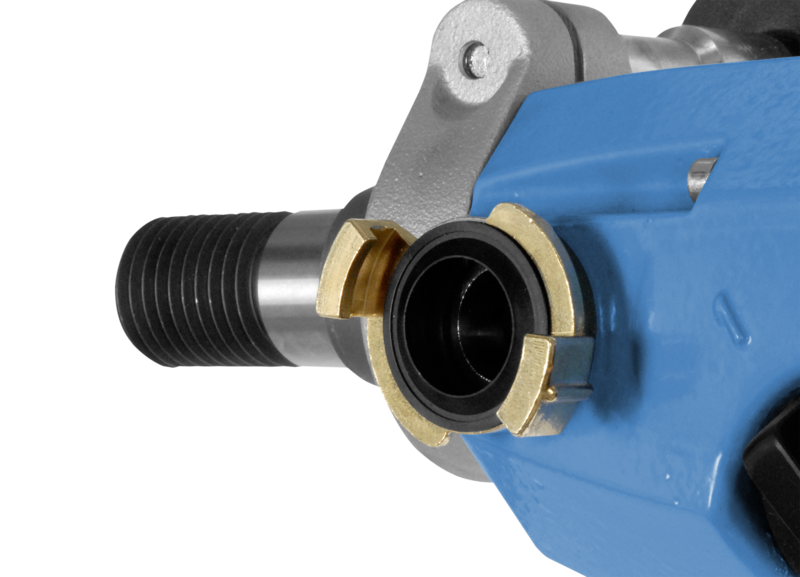

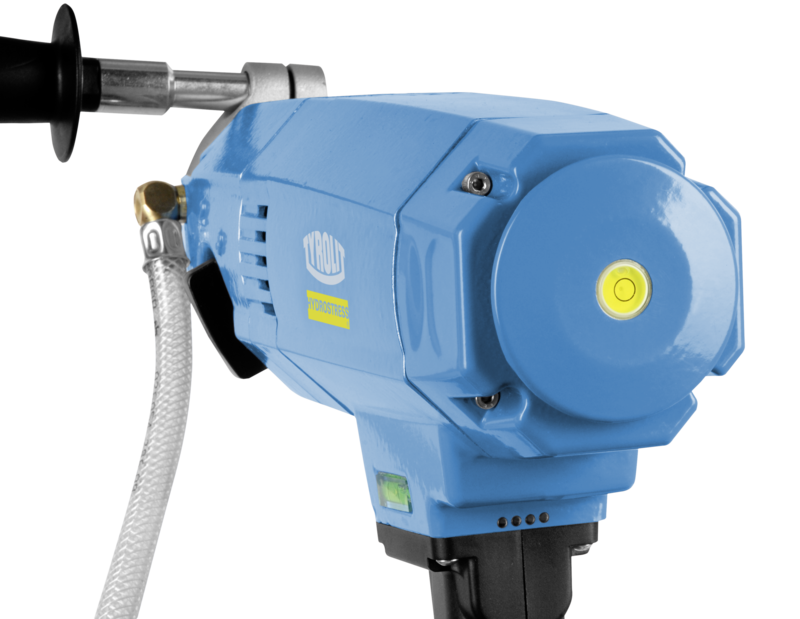

Efficient motor with very high drilling performance. The DME20 drill motor provides impressive drilling performance in the power range up to 2 kW. The mechanical and electronic overload cut-out and the full metal housing ensure high reliability. Built-in performance and service indicators, as well as the levelling aid, also enable easy operation. The drill motor is suitable for universal use and covers a wide variety of application areas: manual/drill-rig guided and wet/dry (DME20PU). Show more Show less
Downloads |
---|
Product flyer PDF 183 kb |
Manual PDF 1.68 mb |
Optimum handling due to extremely compact size and low weight. The low weight and extremely compact size are the highlights of the DME24 and ensure perfect handling. The mechanical and electronic overload cut-out and the full metal housing ensure high reliability. Built-in performance and service indicators, as well as the levelling aid, also enable easy operation. The drill motor is available with different drill rig attachments (ModulDrill™ quick clamping system or universal plate). Show more Show less
Downloads |
---|
Product flyer PDF 202 kb |
Manual PDF 1.31 mb |

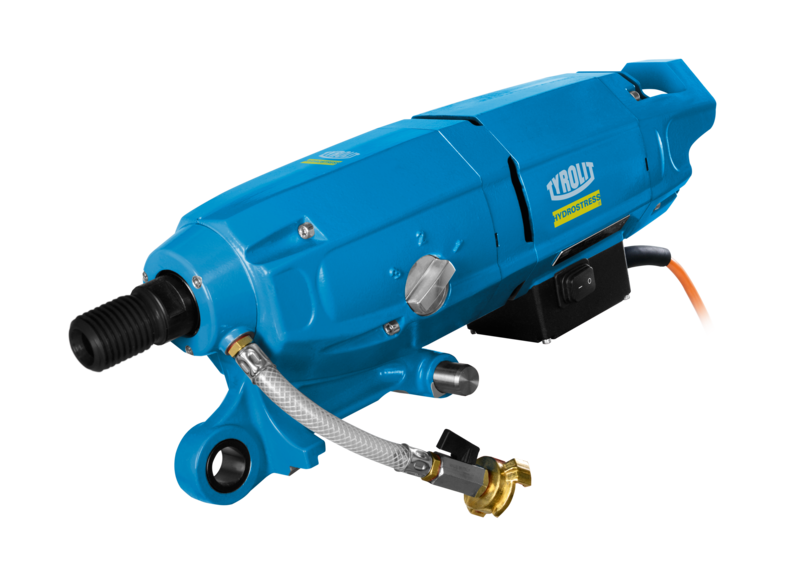

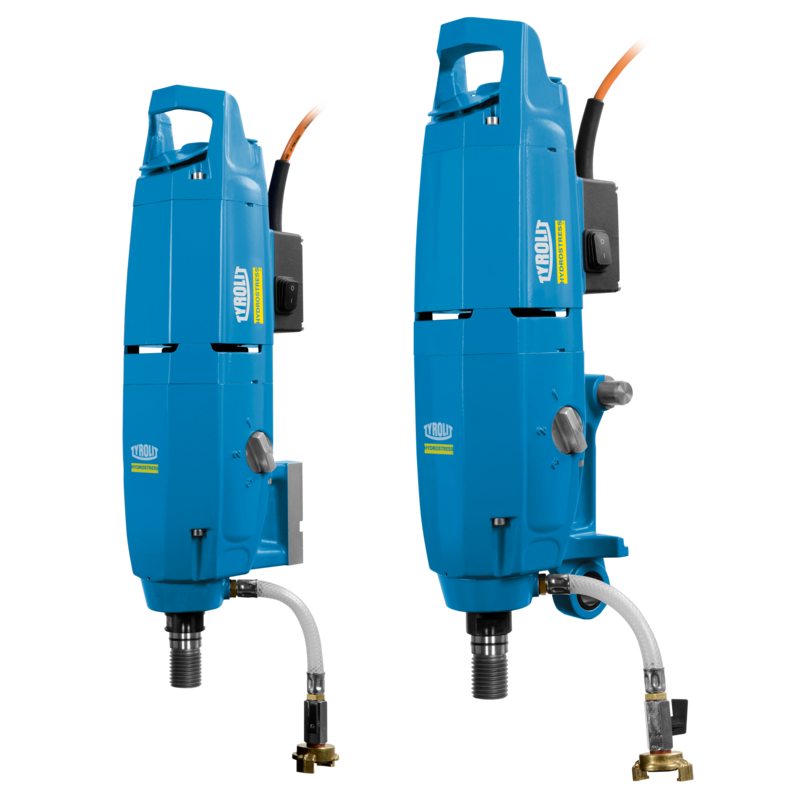

High productivity due to optimum torque adjustment. Thanks to optimum torque adjustment, the DME33 is an extremely powerful drill motor providing impressive productivity. The mechanical and electronic overload cut-out and the full metal housing ensure high reliability. Built-in performance and service indicators, as well as the levelling aid, also enable easy operation. The drill motor is available with different drill rig attachments (ModulDrill™ quick clamping system or universal plate). Show more Show less
The DME52UW is a powerful, water-cooled 3-phase drill motor. The DME52UW is a powerful, water-cooled 3-phase drill motor. Its 5.2 kW of power in combination with the oil-bath lubricated gearbox, provide optimum torque and rotation speed for a high drilling performance up to a maximum diameter of 500 mm. Full metal housing, overload clutch and motor thermal protection as well as IP 55 protection class guarantee maximal reliability. LED performance indicator, Softstart and antifriction-element ensure user friendly operation. Show more Show less
Downloads |
---|
Product flyer PDF 178 kb |
Quick and easy drilling of large and deep bores. In accordance with the TYROLIT modularity principle, the DGB1000 delivers optimum rotational speeds and impressive performance in conjunction with either the electric high-frequency motor or hydraulic standard motor options, by means of 8 transmission stages – two speeds at the drilling gear box and up to four stages via the relevant drive. With optimised drill bit attachment for large diameters and high torques. Show more Show less
Downloads |
---|
Product flyer PDF 282 kb |
Manual PDF 1.53 mb |
Quick and easy drilling of large and deep bores. In accordance with the TYROLIT modularity principle, the DGB1000 delivers optimum rotational speeds and impressive performance in conjunction with either the electric high-frequency motor or hydraulic standard motor options, by means of 8 transmission stages – two speeds at the drilling gear box and up to four stages via the relevant drive. With optimised drill bit attachment for large diameters and high torques. Show more Show less
Downloads |
---|
Product flyer PDF 289 kb |
Manual PDF 1.53 mb |
The ideal core drill entry model. The DRS162 drill system is the ideal core drill entry model. The drill motor and drill rig complement each other perfectly and form a single unit. The preset speed and compact, lightweight construction guarantee easy handling and user-friendliness. An integrated PRCD safety switch ensures maximum safety. Show more Show less
Downloads |
---|
Product flyer PDF 158 kb |
Manual PDF 433 kb |
The DRS250 drilling system combines simplicity with a large drill diameter range. The DRS250 drilling system combines simplicity with a large drill diameter range. The drill motor and drill rig complement each other and form a single unit. 2-speed oil bath gearbox insures perfect lubrication in all working positions, as well as optimal torque-to-speed ratio. Compact and lightweight construction guarantees easy handling and user-friendliness. Mechanical overload clutch and integrated PRCD safety switch ensure maximum safety. Optional vacuum plate offers more flexibility in fixing the system. Show more Show less
Downloads |
---|
Product flyer PDF 174 kb |
Manual PDF 699 kb |
Ideal for electrical and installation work. The DRA150 is extremely well-suited for electrical and installation work. This drill rig is suitable for 550 mm drill bits and angle drilling. A centre indicator, spirit level and carrying handle facilitate handling. Show more Show less
Downloads |
---|
Product flyer PDF 148 kb |
Manual PDF 2.08 mb |
Lightweight under the drill rigs up to Ø 160 mm. The DRU160 is the lightweight among drill rigs up to Ø 160 mm. The standardised clamping collar system enables quick mounting of common drill motors. In addition, a centre indicator, angle indicator and spirit level enhance user-friendliness and help save valuable time during drill rig set-up. The anchor or vacuum attachment facility also increase flexibility. Show more Show less
Downloads |
---|
Product flyer PDF 166 kb |
Manual PDF 622 kb |
Impressive stability and drilling performance with sturdy processing and robust drilling columns - wide gear teeth. The DRA250 | DRU250 drill rigs offer impressive stability and drilling performance thanks to sturdy workmanship and robust drilling columns with wide gear teeth. The optimised support with sturdy roller guide guarantees precise drilling. The proven ModulDrill™ quick clamping system enables fast and secure mounting of drill motors. In addition, a centre indicator (DRU250), angle indicator and two-speed feed gear enhance user-friendliness and help save valuable working time. The compact lightweight construction for easy transport, assembly and disassembly complete the system. Show more Show less
Downloads |
---|
Product flyer PDF 215 kb |
Manual PDF 796 kb |
The BY dual rod drill rig combines a lightweight design with great stability. The BY dual rod drill rig combines a lightweight design with great stability. The accurate guide principle enables inclined drilling at any angle. This particularly compact core drill rig can be combined with a wide range of electric drilling motors. Thanks to its modular design, the drill rig can also be used for more powerful hydraulic drilling operations. Show more Show less
Downloads |
---|
Product flyer PDF 151 kb |
Manual PDF 2.00 mb |
Easiest drilling of bores in walls, ceiling and floors thanks to intelligent design with drilling and gripping column that can be rotated by 360°. Thanks to its intelligent design with drilling and gripping column that can be rotated by 360°, the DRU350 enables the drilling of holes in walls, ceilings and floors. The drill rig can be mounted in a time saving and material protecting manner via an innovative telescope clamping system. Various settings options, an extended drilling column and a variety of drill accessories ensure universal use. Show more Show less
Downloads |
---|
Product flyer PDF 194 kb |
Manual PDF 0.90 mb |
The professional core drilling system for the most versatile fields of application. DRA400 and DRU400, the professional core drilling systems for a versatile application range. The optimised support with sturdy roller guide guarantees precise drilling. The proven ModulDrill™ quick clamping system enables fast and secure mounting of drill motors. In addition, a centre indicator, angle indicator and two-speed feed gear enhance user-friendliness and help save valuable working time. The compact lightweight construction for easy transport, assembly and disassembly complete the system. Show more Show less
Downloads |
---|
Product flyer PDF 208 kb |
Manual PDF 904 kb |

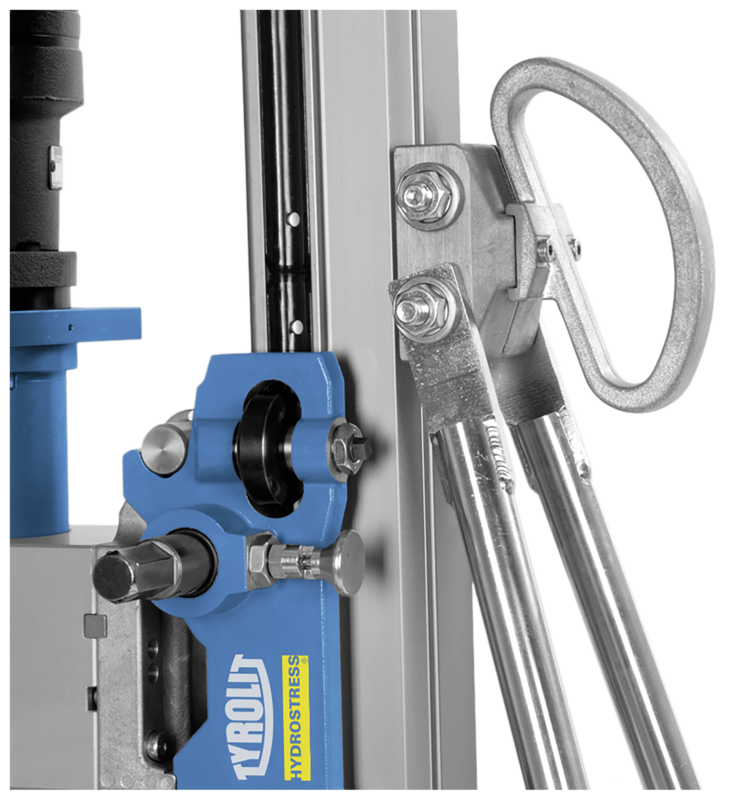

Maximum stability and drilling performance for the highest demands. The DRA500, a drill rig for maximum stability and the highest demands during drilling. The proven ModulDrill™ quick clamping system enables fast and secure mounting of drill motors. Thanks to an extended drilling column, even long through-holes can be made with ease. Thanks to the modular design, combined use with TYROLIT cable saws and hydraulic equipment is possible without difficulty. Show more Show less
Downloads |
---|
Product flyer PDF 197 kb |
Manual PDF 715 kb |
Cost-effective drilling with hydraulic drill and feed motor. The DRA500, a drill rig for maximum stability and the highest demands during drilling. The proven ModulDrill™ quick clamping system enables fast and secure mounting of drill motors. Thanks to an extended drilling column, even long through-holes can be made with ease. Thanks to the modular design, combined use with TYROLIT cable saws and electric equipment is possible without difficulty. Show more Show less
Downloads |
---|
Product flyer PDF 211 kb |
Manual PDF 715 kb |
Perfect for drilling large bores. The BC-2 is ideal for drilling large holes up to 1 000 mm. Thanks to the modular design, combined use with TYROLIT cable saws and hydraulic equipment is possible without difficulty. The dual-column guidance principle and a two-speed feed gear enable user friendly work and low weight. A large selection of drill accessories rounds off the range. Show more Show less
Downloads |
---|
Product flyer PDF 246 kb |
Manual PDF 1.44 mb |
Cost-effective drilling with hydraulic drill and feed motor. The BC-2 is ideal for drilling large holes up to 1 000 mm. Thanks to the modular design, combined use with TYROLIT cable saws and electric equipment is possible without difficulty. The dual-column guidance principle and a two-speed feed gear enable user friendly work and low weight. A large selection of drill accessories rounds off the range. Show more Show less
Downloads |
---|
Product flyer PDF 214 kb |
Manual PDF 1.44 mb |
