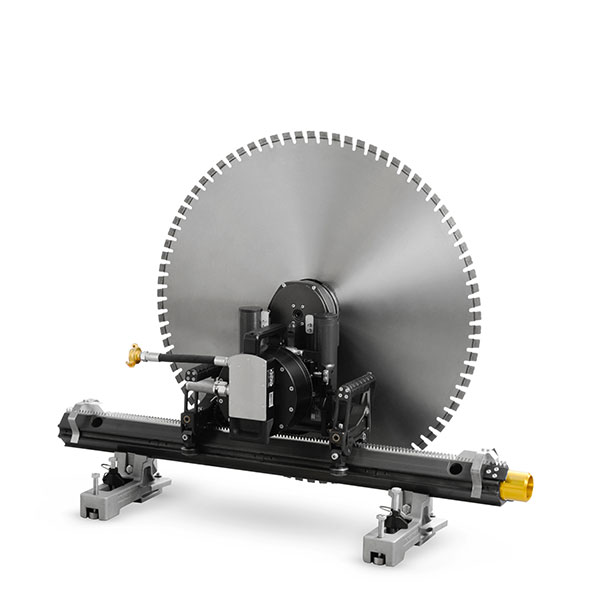

Extremely compact and light components as well as innovative equipment features set new standards in the field of wall saws and make application simpler and more efficient than ever:

• 23.5 kg light saw, water-cooled 17 kW HF motor
• Cut depths up to 705 mm, blade diameter up to 1 600 mm

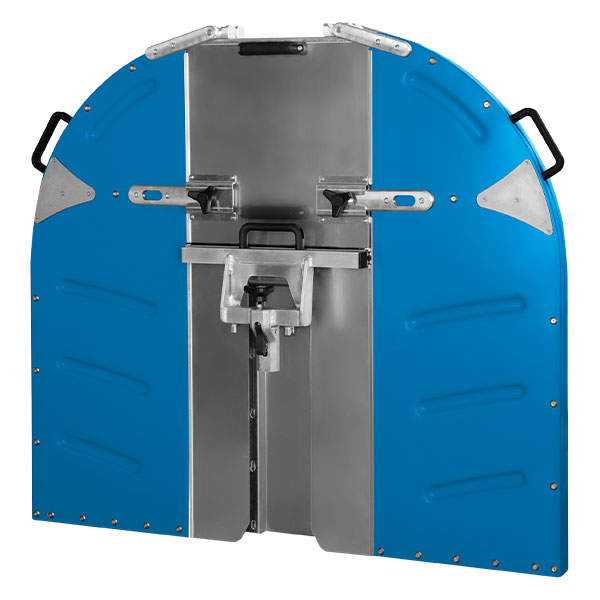

• Newly designed, ultra-light and robust blade guard

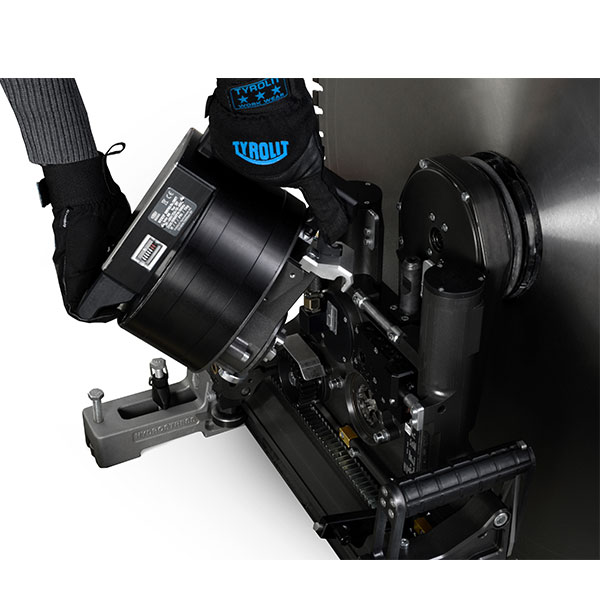

• Compact drive motor with tool-free quick connection

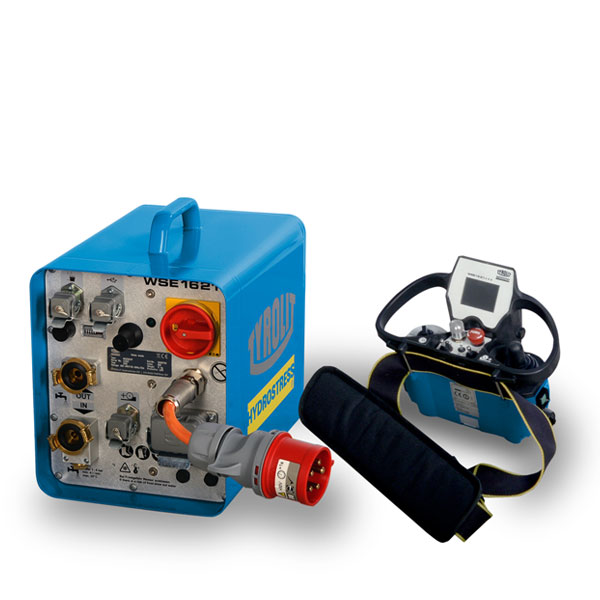

• Handy remote control with colour display
• Innovative communication interfaces
• Revolutionary P2® drive technology for extreme reliability without power loss
• Modular use of components: the control and main motor represent the entry level into the exclusive world of TYROLIT modularity and, in addition to wall sawing, are also suited to wire sawing and drilling

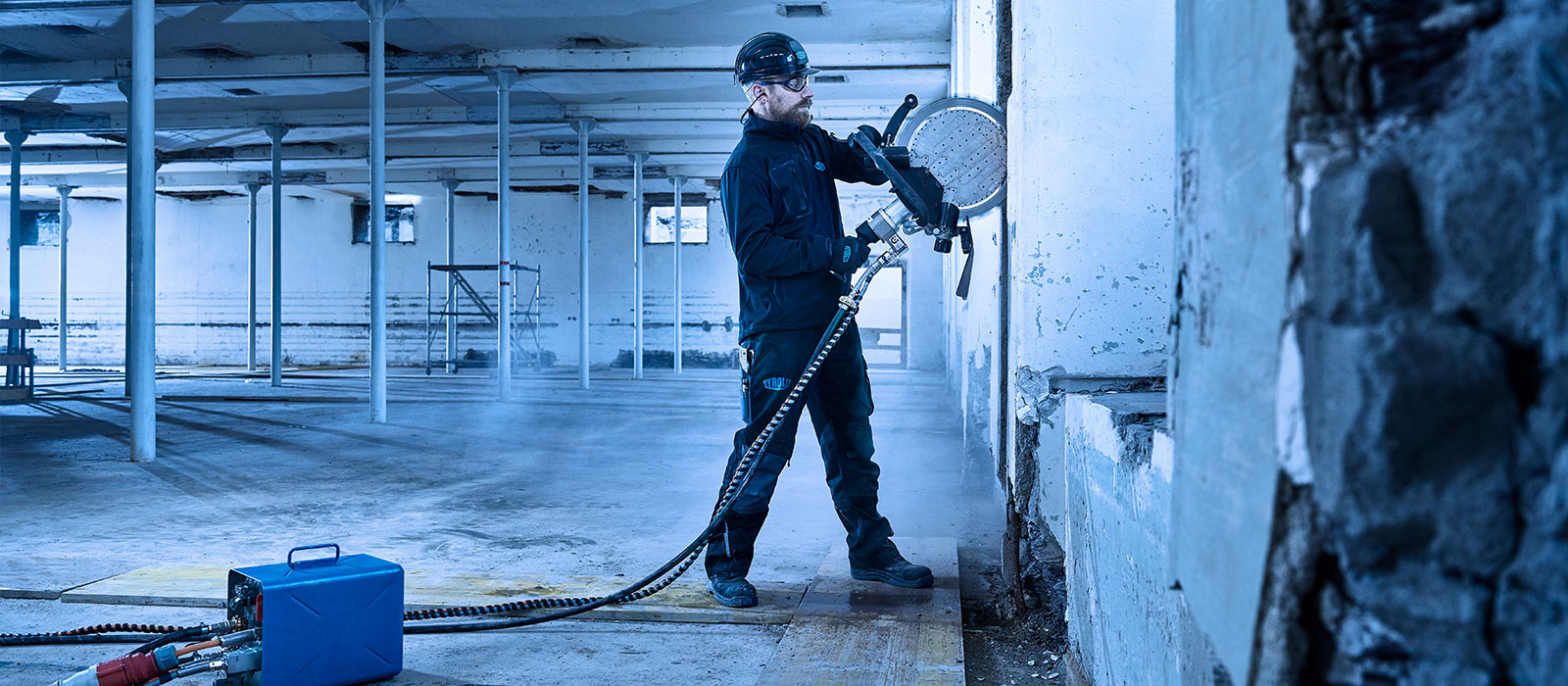

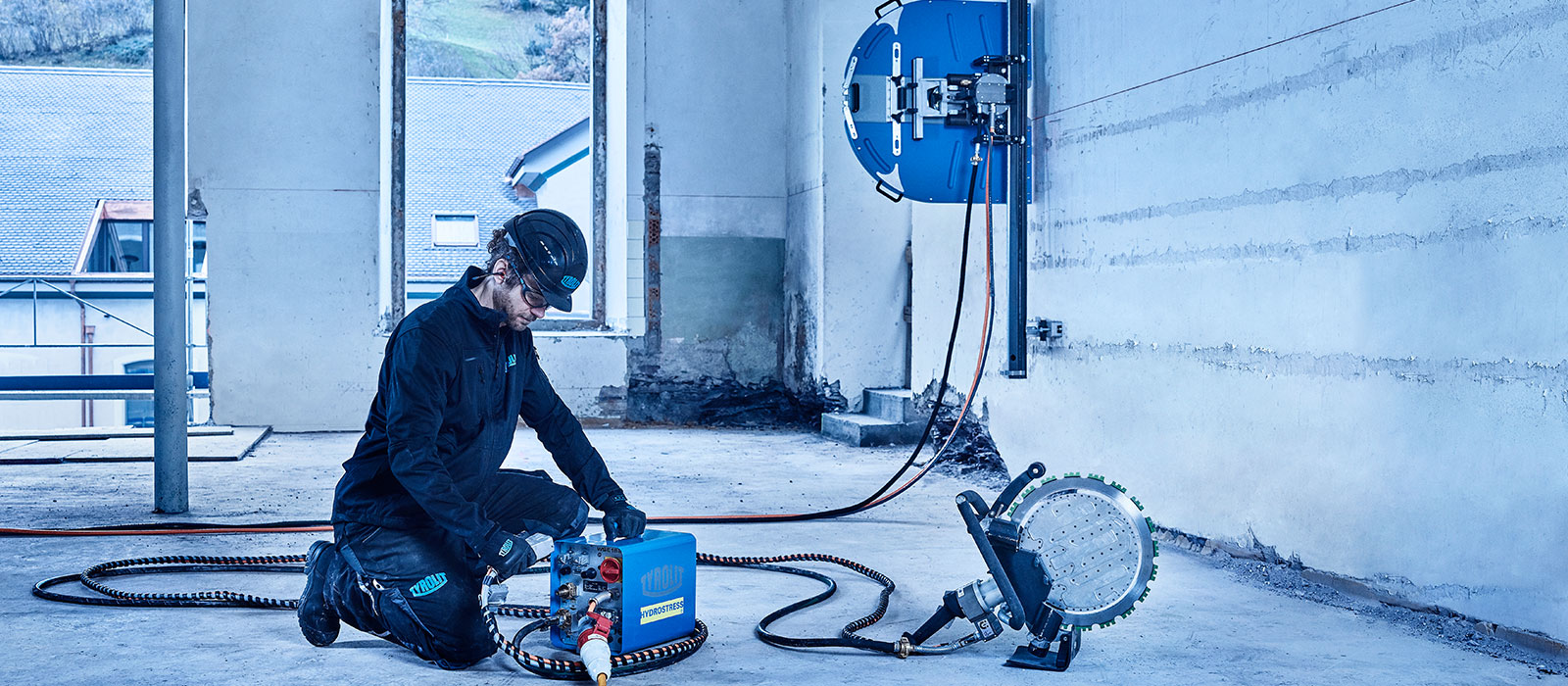

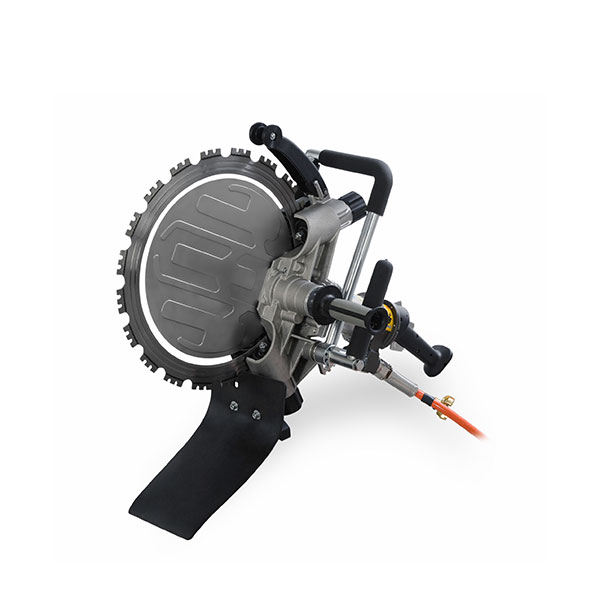

The new HRE410 is an ergonomically designed, electric ring saw for working without overcuts. It can be connected directly to the control unit of the WSE1621 wall saw system, thus creating a further area of application for the system.

With cutting depths of up to 300 mm, the new ring saw is an optimal alternative to corner drilling or diamond chain saws. A special highlight is its intelligent ergonomics: Both handles of the machine are adjustable. The rear handle can be rotated by 90° for horizontal cuts and enables a low-fatigue position during cutting.

• Modular use with the control unit of the wall saw system WSE1621
• For cutting depths up to 30 mm
• 6.5 kW strong motor with P2® high-frequency technology

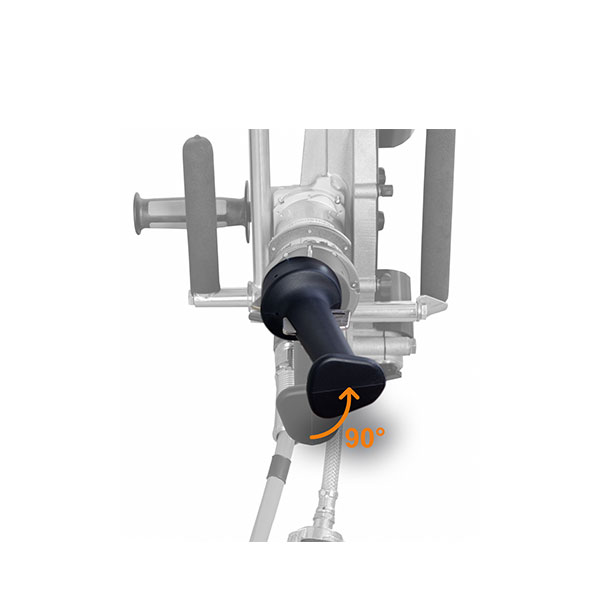

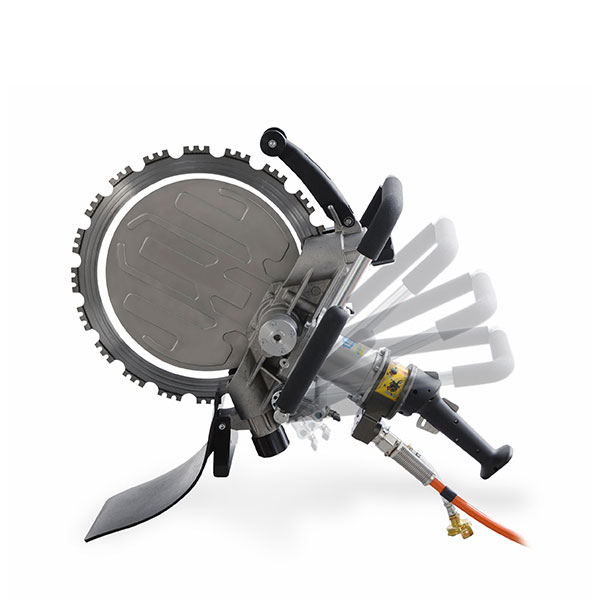

• Adjustable, ergonomic handles: front handle for left and right-handed use; rear handle can be rotated by 90°
• Water supply adjustable directly on the handle
• Overload and excess temperature display

Technical data
